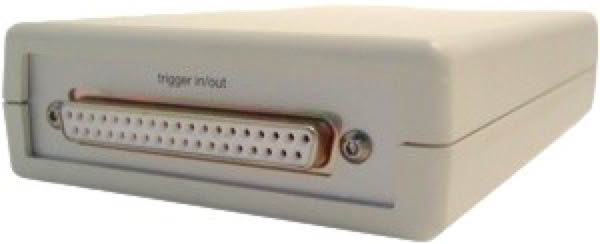

c-pod for Biosemi plugs directly into the trigger in/out connector on ActiveTwo’s USB 2.0 Receiver.
The channel number is as seen in ActiView. The analog (Trig. number) and decimal values are both presented. Ground is on DB37 pin 37. BioSemi’s description of trigger signals might also be useful.
c-pod Signal
Seen by ActiView as
Bit 0
Trig. 1 / 1 (Least Significant Byte)
Lightsensor 2
Bit 1
Trig. 2 / 2
Trig. 2 / 2
Bit 2
Trig. 3 / 4
Lightsensor 4
Bit 3
Trig. 4 / 8
Trig. 4 / 8
Bit 4
Trig. 5 / 16
Bit 5
Trig. 6 / 32
Bit 6
Trig. 7 / 64
Event marker bit 0
Bit 7
Trig. 8 / 128
Trig. 8 / 128
Bit 8
Trig. 9 / 1 (Most Significant Byte)
Bit 9
Trig. 10 / 2
Bit 10
Trig. 11 / 4
Bit 11
Trig. 12 / 8
Bit 12
Trig. 13 / 16
Bit 13
Trig. 14 / 32
Bit 14
Trig. 15 / 64
Bit 15
Trig. 16 / 128
Last revision: Dec 21, 2016
