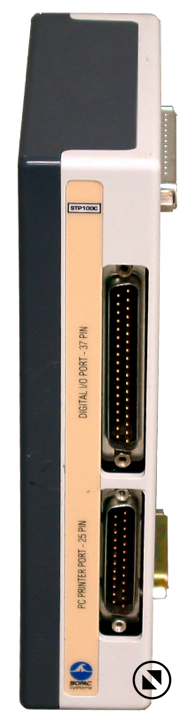

c-pod for Biopac STP100C plugs to the 37-pin Digital I/O Port connector on the STP100C module via an included blue ribbon cable. This document describes the signals that the adapter board makes available to STP100C.

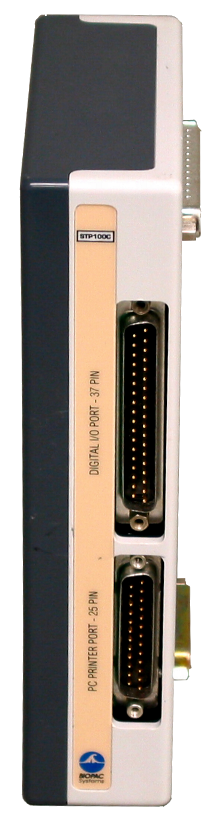

Please note that the STP100C also has a DB25 connector but it is not compatible with the DB25 connector on the MP35 and MP36. Connecting “c-pod for Biopac MP36” to the STP100C will not work.
Setting up AcqKnowledge to work with c-pod is straightforward. The screen snapshots below were taken using AcqKnowledge 4.2.
1.

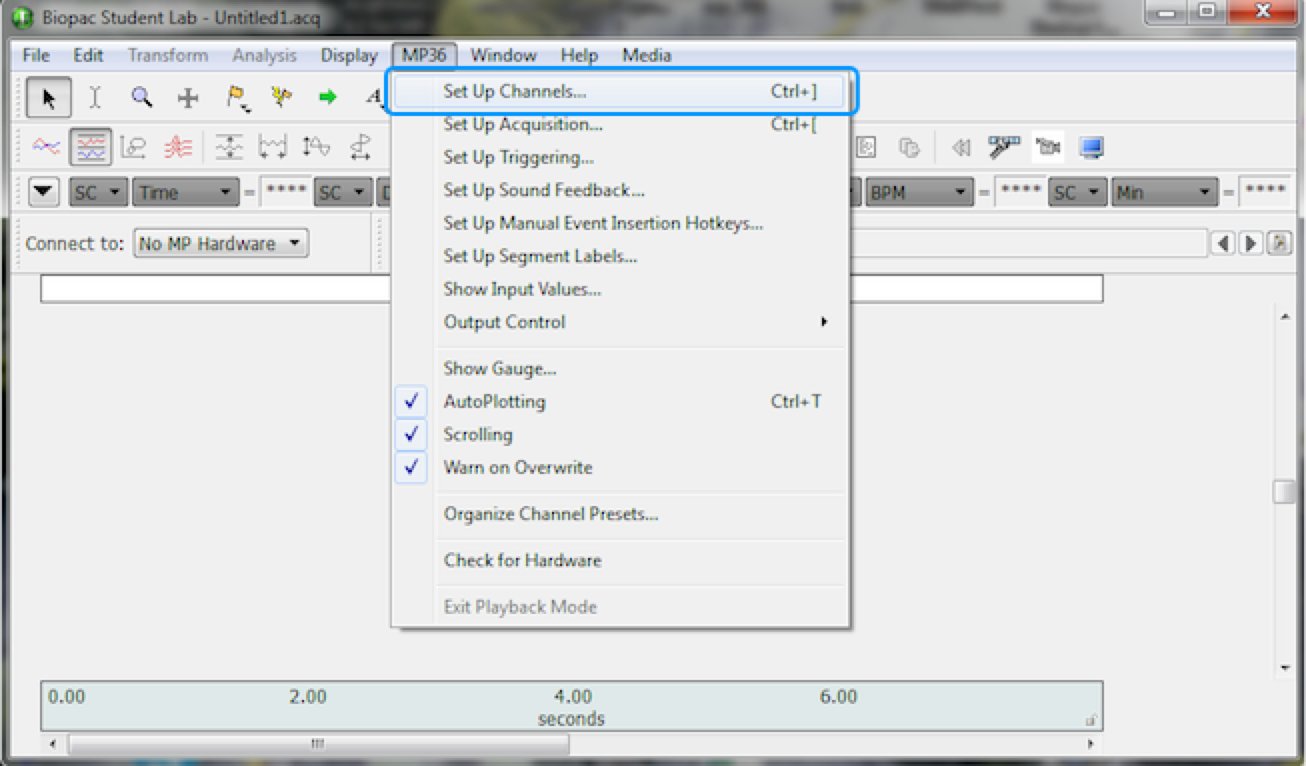

Click on the MP150 menu and choose Set Up Channels….
2.

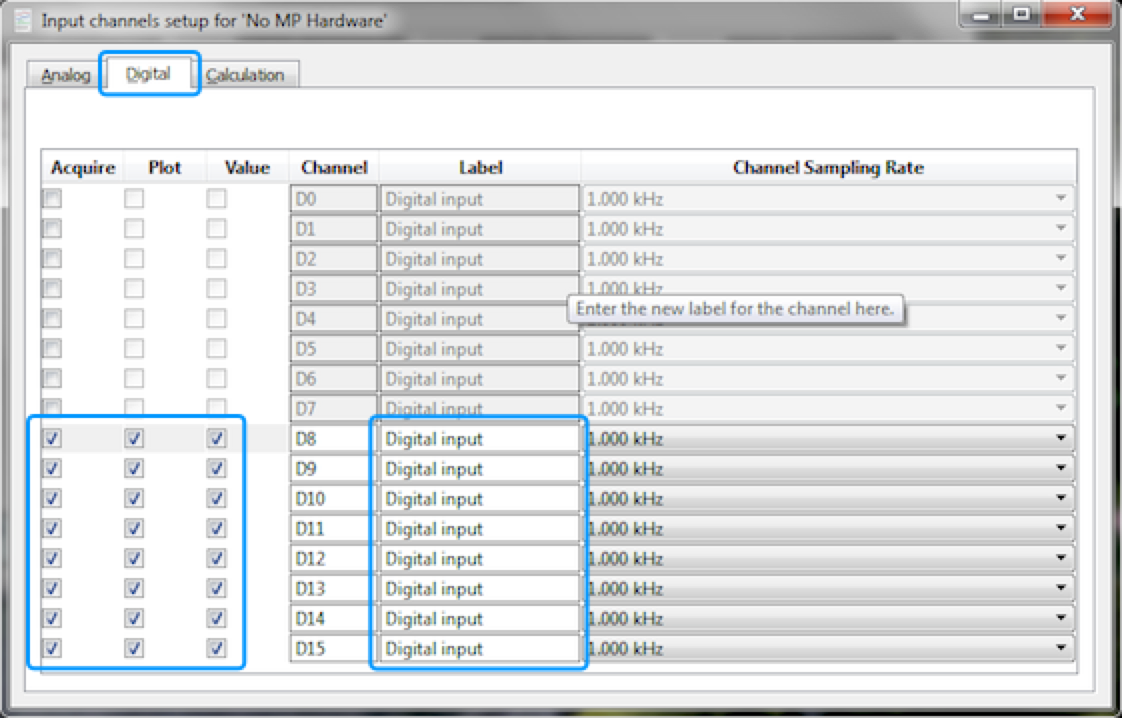

The “Input channels setup” dialog appears. Click on the Digital tab.
3.
For channels D8 to D15, enable all checkboxes for each of the Acquire, Plot, and Value columns.
4.
Optionally, you can also rename the labels.
Close the “Input channels setup” dialog and click on “Start”.
The channel number in the table is as seen in the AcqKnowledge software. Ground is on DB37 connector pins 19 and 21.
c-pod Signal
Trigger Value
Bit 0
D15
Bit 1
D14
Bit 2
D13
Bit 3
D12
Bit 4
D11
Bit 5
D10
Bit 6
D9
Bit 7
D8
Last revision: June 27, 2018
