Summary

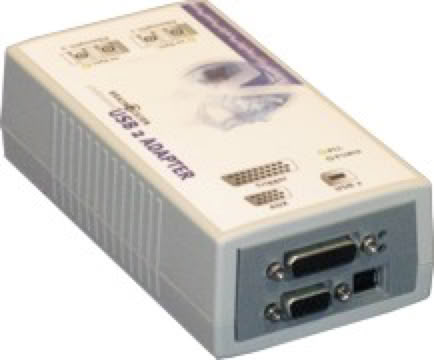

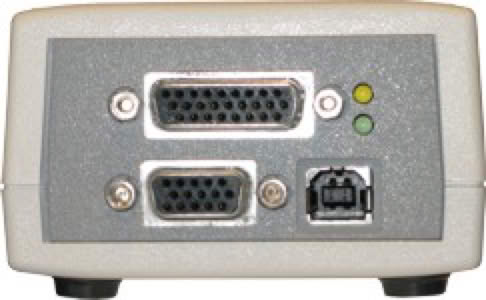

c-pod for Brain Products USB2 plugs directly into the Brain Products’ USB2 interface:

Setting Up BrainVision Recorder

You do not really need to do anything in Recorder in order to see event makers. They are displayed at the bottom of the screen, e.g. S32, S64, and so forth:

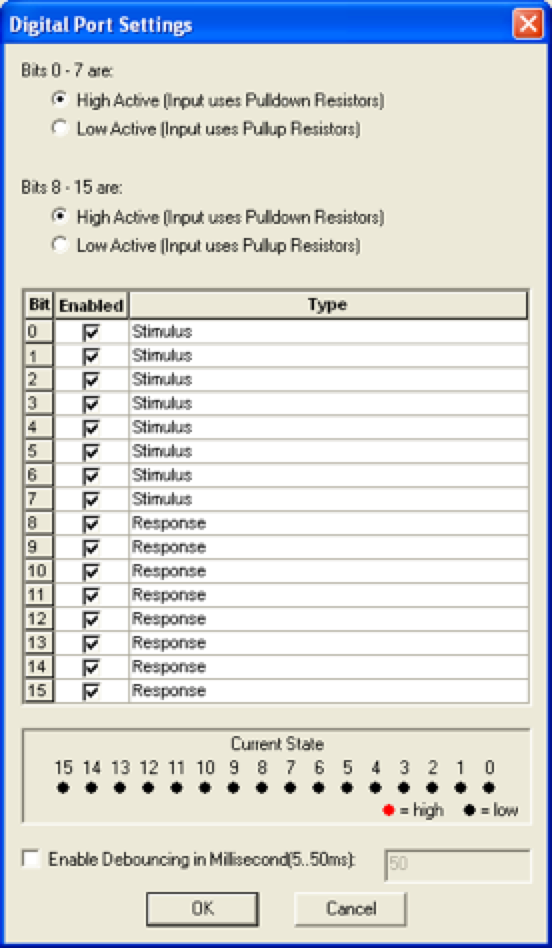

However, you may find that adjusting some settings can make your data analysis easier later on. To do so, click on the Amplifier menu and choose Digital Port Settings…. Recorder displays the following dialog:

In the table, click on the “Type” column of the relevant row to rename, e.g. rename one “Stimulus” row to “Congruent” and another row to “Incongruent”.. Recorder will then display an “C” and “I” prefixes instead of “S” when c-pod produces output on those designated lines.

The Signals

Ground is on DB26 pins 1 and 22. The bit numbers correspond 1-to-1:

c-pod Signal

Seen by BrainVision Recorder as

Bit 0

Bit 0

Bit 1

Bit 1

Bit 2

Bit 2

Bit 3

Bit 3

Bit 4

Bit 4

Bit 5

Bit 5

Bit 6

Bit 6

Bit 7

Bit 7

Bit 8

Bit 8

Bit 9

Bit 9

Bit 10

Bit 10

Bit 11

Bit 11

Bit 12

Bit 12

Bit 13

Bit 13

Bit 14

Bit 14

Bit 15

Bit 15
