Important

See this blog post for very important timing considerations — regardless of which version of Net Station you are using.

Summary

c-pod for EGI is fitted with a DB9 connector:

It is ready to plug into the GES 200 and GES 250, using the Net Amps 200.

On the GES 300 and later systems, an additional “Hypertronics-to-DB9” cable is needed. Most installations usually purchase this cable with their EGI system. If you do not have it, you can buy one from EGI or Cedrus’ store.

Setting Up Net Station

Setting up Net Station to work with c-pod is straightforward. The screenshots below were taken using Net Station 4.5.5.

1.

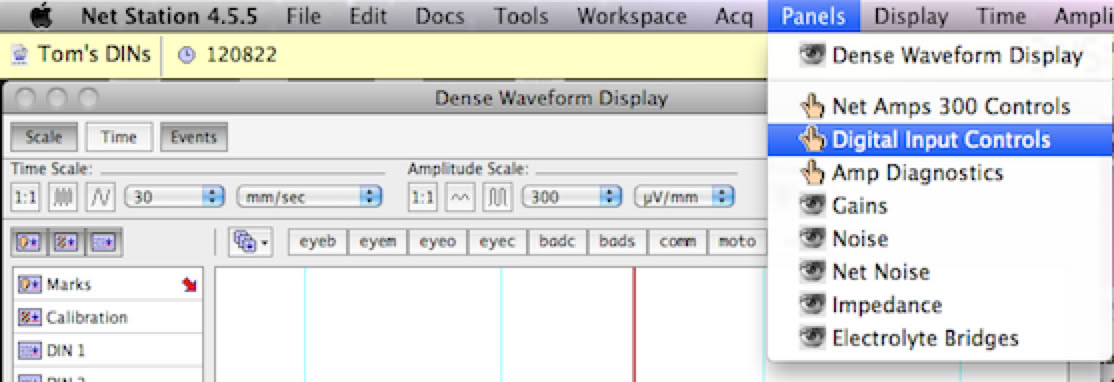

Click on the Panels menu and choose Digital Input Controls.

2.

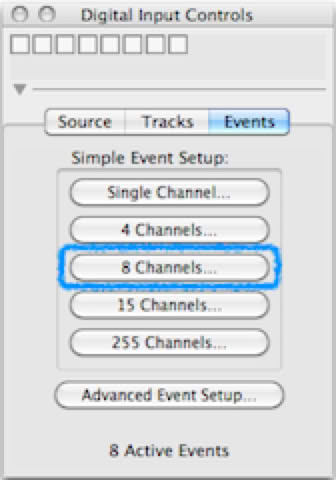

In the “Digital Input Controls” window that appears, click on the 8 Channels… button. Another window appears.

3.

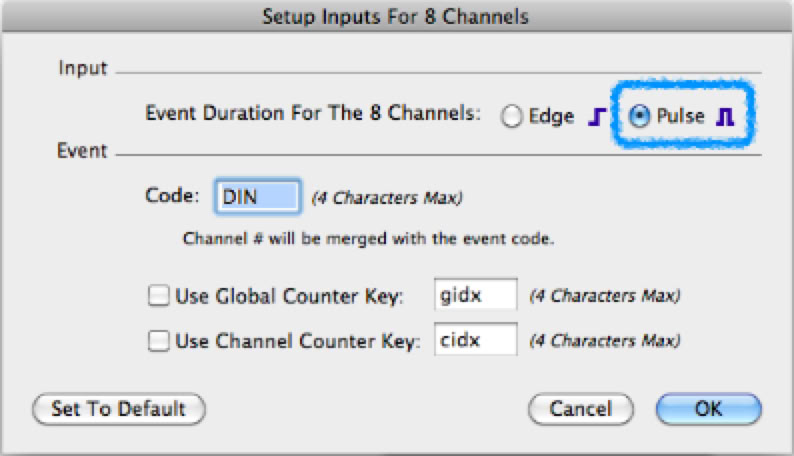

In the “Setup Inputs for 8 Channels” window, select the Pulse radio button (highlighted).

4.

Click on OK to close the window.

You are now ready to acquire data. DINs will then appear and be recorded with a duration that corresponds to the duration of the event codes sent via c-pod from the stimulus presentation computer.

The Signals

The trigger value is as seen in the Net Station software.

c-pod Signal

Trigger Value

Bit 0

0

Bit 1

1

Bit 2

2

Bit 3

3

Bit 4

4

Bit 5

5

Bit 6

6

Bit 7

7
