Summary

c-pod for Neuroscan plugs directly into a Neuroscan EEG amplifier.

Setting Up the Software

Using SCAN

Neuroscan’s SCAN software has been superseded by Curry, and c-pod’s interface to Neuroscan hardware was developed long after SCAN’s last major release. Consequently, only Trigger bits 0-7 can be detected by SCAN.

Using Curry 7.0.5 or later

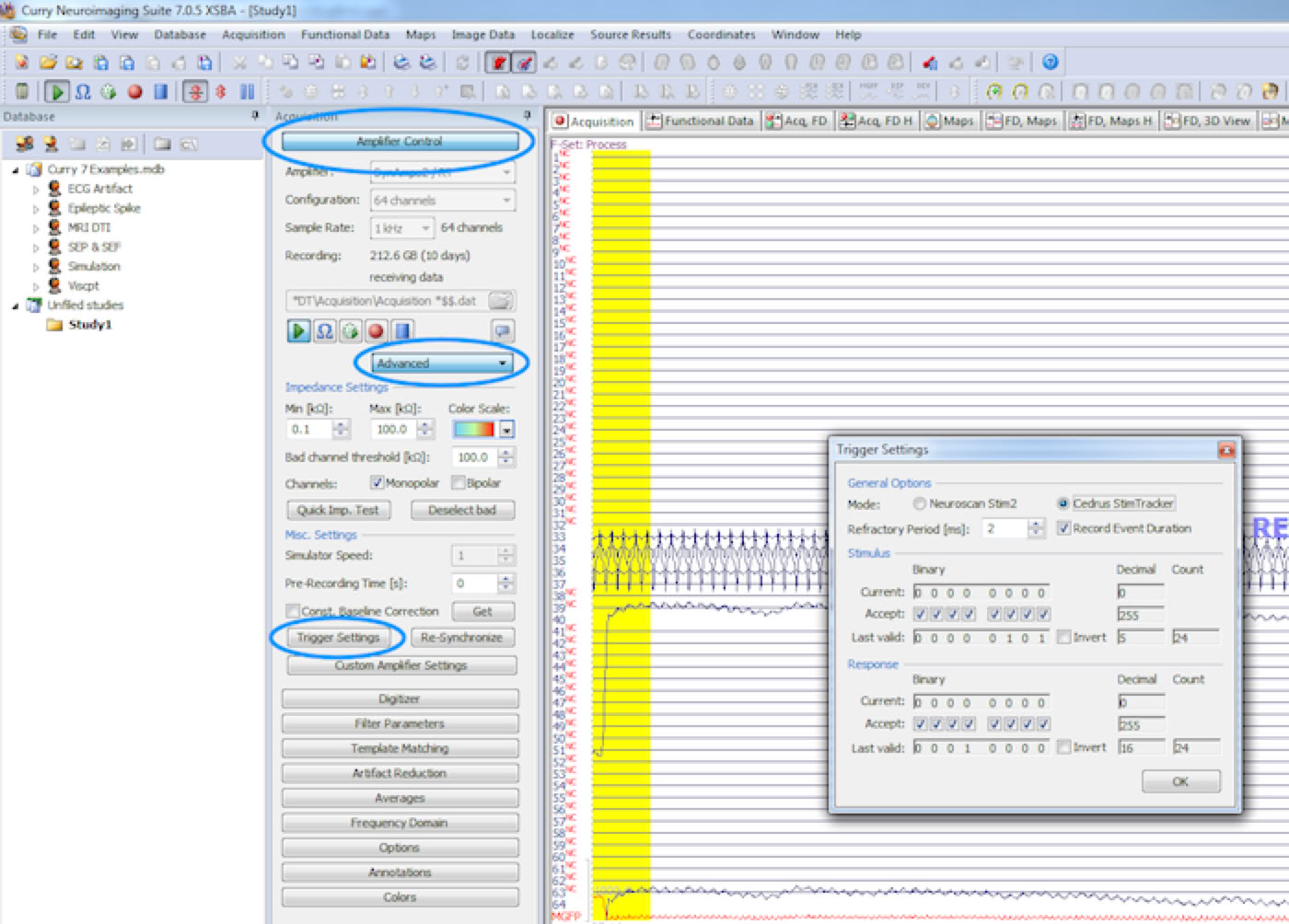

Curry version 7.0.5 or later implements direct support for StimTracker. To use:

Click on Amplifier Control button

Click on Advanced button

Click on Trigger Settings button

The Trigger Settings dialog (screen) appears. Select the Cedrus StimTracker radio button.

The Signals

Ground is on DB25 pin 25.

StimTracker Signal

Seen by Neuroscan as

Comments

Event marker bit 7

Trigger bit 7

Event marker bit 6

Trigger bit 6

Event marker bit 5

Trigger bit 5

Event marker bit 4

Trigger bit 4

Event marker bit 3

Trigger bit 3

Event marker bit 2

Trigger bit 2

Event marker bit 1

Trigger bit 1

Event marker bit 0

Trigger bit 0

Light sensor 1

Response bit 7

Light sensor 2

Response bit 6

Microphone

Response bit 5

Audio L+R

Response bit 4

StimTracker will produce output when the volume rises above the preset threshold on either the left audio channel or the right audio channel

TTL input, line 4

Response bit 3

TTL input, line 3

Response bit 2

TTL input, line 2

Response bit 1

TTL input, line 1

Response bit 0

Arrow Back Back to c-pod Support main page
Last revision: April 18, 2013
