For maximum compatibility with application programs, the response pads offer the following:
This document describes the DIP switch settings. However, if you already know which program you want to use your response pad with, e.g. SuperLab or E-Prime, see the RB Series support home page for a list of programs.

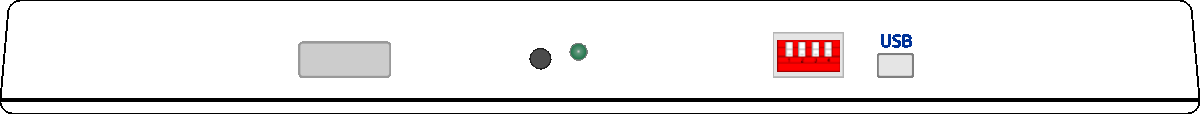

The DIP switches are located on the back of the response pads, to the left of where the USB cable plugs into the pad:
It is important to note that the response pad “reads” the position of the switches only when it is powered up. If you change them, you will need to unplug the USB connector and plug it in again for the new settings to take effect.
When shipped, all the switches are in the down (On) position. Switch 1 determines the mode: Keyboard (when switch 1 is up) vs. Standard (when switch 1 is down). Switches 2 and 3 determine the protocol used. Switch 4 determines the baud rate (speed) at which the data is sent.
Last revision: Feb 26, 2016
For Use With
When Switches:
The Protocol is
Switch 4 Indicates
2 and 3 are down
XID
If down, baud rate is 115K.
If up, baud rate is 9600.
SuperLab 4 or later, Presentation, and Experiment Builder
2 is up and 3 is down
E-Prime
PST SRB Model 200A Emulation
If down, baud rate is 19200.
If up, baud rate is 9600.
2 is down and 3 is up
ASCII
If down, baud rate is 19200.
If up, baud rate is 9600.
MEDx, custom software
2 and 3 are up
RB-x20
If down, baud rate is 19200.
If up, baud rate is 9600.
Inquisit, SuperLab for Macintosh 1.7x
