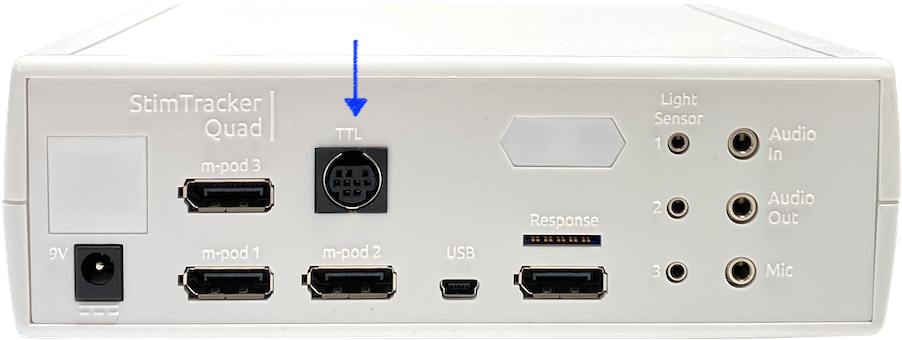

For applications where a data recorder is not supported by m-pod, the StimTracker Quad model includes a “TTL Output” connector that is useful for custom solutions.

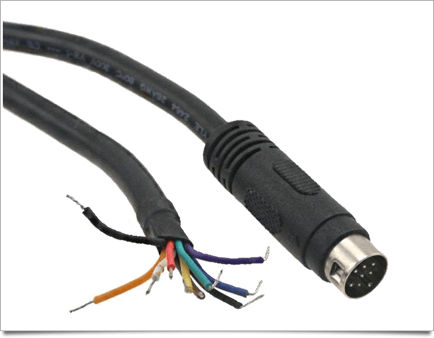

The “TTL Output” connector is a commercially available Mini-DIN8 connector. For your convenience, Cedrus offers a mating 6 foot cable. The wires on one end are stripped and dipped in solder to make soldering them easier.
With m-pod, a signal can be assigned to an output pin. The “TTL Output” connector does not have the same flexibility, but to maximize the usefulness of the available 8 pins, StimTracker Quad uses a “logical OR” approach, meaning that a pin can indicate a USB output bit -OR- another event marker.
The table below describes the pin assignments. The Wire Color column refers to the color of the individual wire described above; ignore it if using a different cable.
Last revision: May 5, 2020
Mini-DIN8 Pin no.
Signal Is
Wire Color
1
USB bit 0
OR
Light sensor 4
White
2
USB bit 1
OR
Red
Light sensor 3
3
USB bit 2
OR
Light sensor 2
Orange
4
USB bit 3
OR
Purple
Voice key
5
USB bit 4
OR
Any participant key press
Brown
6
USB bit 5
OR
Black
Audio – left
7
USB bit 6
OR
Audio – right
Blue
8
USB bit 7
OR
Green
Light sensor 1
9
Ground
Yellow
