Send

event markers

via USB with

high precision.

Why?

To make sense of your data by overlaying event markers on them.

What is it?

c–pod makes it easy to send event markers from your computer to recording devices, and to do so affordably and with precision. It comes ready to plug into your specific research instrument.

2ms Precision. Jitter Free.

c–pod delivers your event markers with precision because it is jitter free when used with our open source Python or C++ libraries. Delay is guaranteed to be 2 milliseconds exactly, every time.

We spared no expense and added a separate USB interface chip that we knew would give us the precision needed.

Instantly Compatible

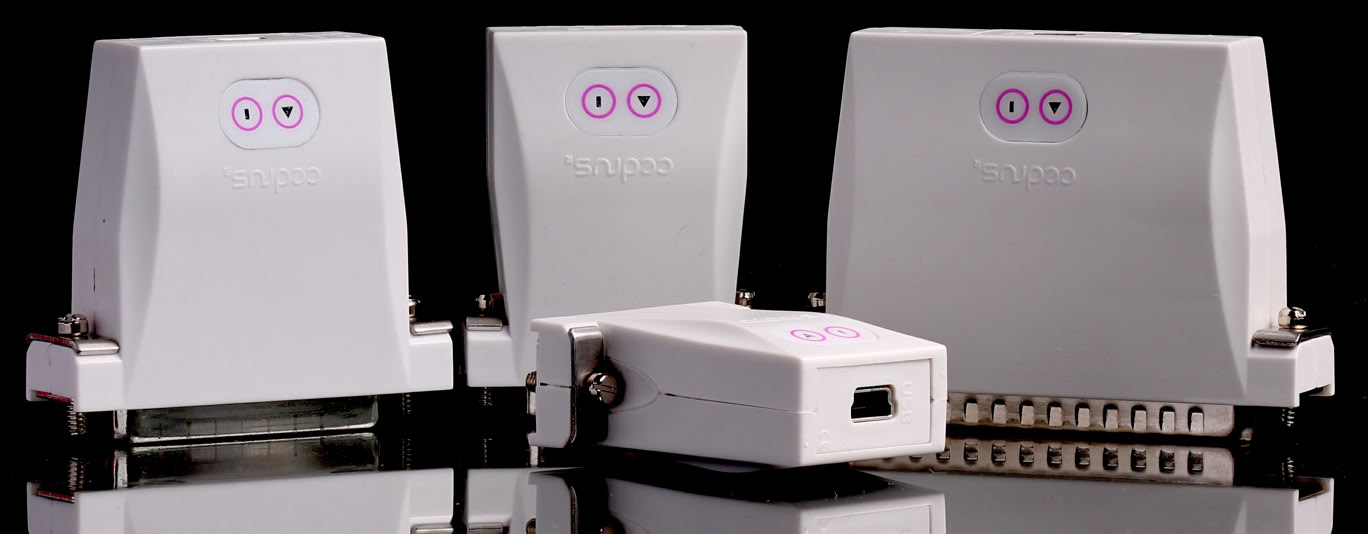

c–pod is a true plug-and-play solution: it is delivered with everything you need to connect to your particular model of EEG, eye tracker, NIR, or other recording instrument. Models are available for:

If you are a manufacturer and need turnkey c–pod support for your equipment, let’s talk.

Available Now

AD Instruments

ANT Neuro

Biopac

Biosemi

Brain Products actiCHamp

Mangold

MindWare

Neuroscan

NIRx

Parallel port

SMI

Tobii Spectrum

Coming Soon

ABM

Brain Products USB2

EGI

Dedicated USB interface chip for best timing

Powerful 32-bit, 44-pin microprocessor with built-in flash memory

Power Packed

c–pod is small but packs a real punch. Its 32-bit microprocessor makes possible the following feature:

Async Output

To send, say, a 10ms long event marker with other I/O devices, an app needs to raise the output line, wait 10ms, then lower the line. This adds timing uncertainty and makes the app more complex. With c–pod, you can deliver a 10ms marker while the app continues its work.

Scheduler

Pattern Generator

A truly unique feature: tell c–pod when to send pulses at a later time, e.g. to mark emotional points during a movie presentation.

Use c–pod as a signal generator on an output line or as a more complex pattern generator.

It’s All in the Family

Researchers have relied on StimTracker since 2008 for detecting events and sending event markers via USB, a solution that costs $1994 or $2494. When you only need to send event markers via USB, c–pod offers that capability at a fraction of the cost.

c–pod

m–pod + response pad

StimTracker

Send Pulses Asynchronously

Signal / Pattern Generator

No

Pulse Scheduler Feature

No

Marks Onset of Participant Key Presses

No

No

Marks Onset of Visual Stimuli

No

Marks Onset Of Auditory Stimuli

No

No

Marks Onset of External TTL Input

No

No

Voice Key

No

No

Number of Simultaneous Outputs

1

1

2

$599

$998

$1295 to $1525

Software Support

Important: some software packages can deliver jitter free performance, but not all.

Jitter Free Software Support

SuperLab 6

C++ Library

Python Library

Version 6 will be a free upgrade to all SuperLab 5 license owners.

Others

E-Prime

We offer an E-Basic code sample. Precision is 5 to 8ms.

Easy to Install and Use

c–pod requires the installation of a USB driver, a five minute task. Each c–pod model comes with the right connector size, gender, and pin assignments. This makes it straightforward to connect to your EEG, eye tracker, or other recording equipment.

There are two LED lights on c–pod. The one on the right (🁢) confirms a connection to the computer. The one on the left () lights up every time an event marker is sent.
