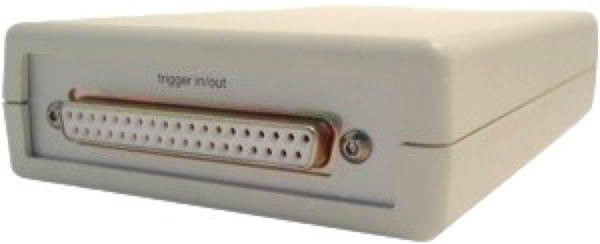

m-pod for Biosemi plugs directly into the trigger in/out connector on ActiveTwo’s USB 2.0 Receiver.
The channel number is as seen in ActiView. The analog (Trig. number) and decimal values are both presented. Ground is on DB37 pin 37. BioSemi’s description of trigger signals might also be useful.
When Connected to a Riponda or RB-x40 Response Pad
Seen by ActiView as
For
Trig. 1 / 1 (Least Significant Byte)
Key press 1
Trig. 2 / 2
Key press 2
Trig. 3 / 4
Key press 3
Trig. 4 / 8
Key press 4
Trig. 5 / 16
Key press 5
Trig. 6 / 32
Key press 6
Trig. 7 / 64
Key press 7
Trig. 8 / 128
Key press 8
Light sensor
OR
Trig. 9 / 1 (Most Significant Byte)
USB bit 0
Trig. 10 / 2
USB bit 1
Trig. 11 / 4
USB bit 2
Trig. 12 / 8
USB bit 3
Trig. 13 / 16
USB bit 4
Trig. 14 / 32
USB bit 5
Trig. 15 / 64
USB bit 6
Trig. 16 / 128
USB bit 7
Note:
When used with a Lumina 3G controller, the same info applies, with the difference that key presses 5 through 8 correspond to keys 1 through 4 on “Response Pad 2”.
When Connected to StimTracker
Seen by ActiView as
Trig. 1 / 1 (Least Significant Byte)
Trig. 2 / 2
Trig. 3 / 4
Trig. 4 / 8
Trig. 5 / 16
Trig. 6 / 32
Trig. 7 / 64
Trig. 8 / 128
Trig. 9 / 1 (Most Significant Byte)
Trig. 10 / 2
Trig. 11 / 4
Trig. 12 / 8
Trig. 13 / 16
Trig. 14 / 32
Trig. 15 / 64
Trig. 16 / 128
For
Notes
Light sensor 4
Quad model only
Light sensor 3
Quad model only
Light sensor 2
Voice key / mic
Quad model only
Any participant key press
Audio – left
Audio – right
Light sensor 1
USB bit 0
USB bit 1
USB bit 2
USB bit 3
USB bit 4
USB bit 5
USB bit 6
USB bit 7
m-pod contains a powerful microprocessor that can reassign any input signal to any output line, and without any significant delay. It can also assign multiple signals to the same output line.
The tables above describe the factory default. If your experiment or lab setup requires different output, Cedrus provides a free utility for configuring your m-pod. After you use it, your configuration is saved to flash memory so that it’s remembered even after you power off m-pod.
Last Revision: July 31, 2018
