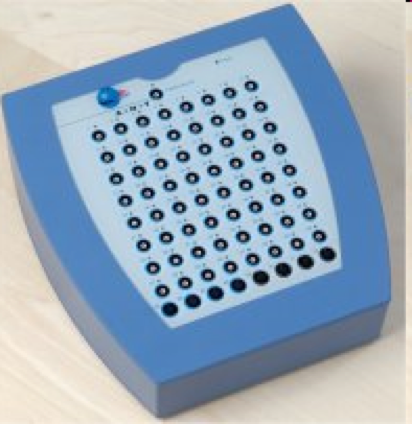

m-pod for ANT Neuro plugs directly into the ANT Neuro EEG amplifier.
The trigger values are as seen in the ASA software.
When Connected to a Riponda or RB-x40 Response Pad
Trigger Value
For
1
USB bit 0
Key press 1
OR
2
USB bit 1
Key press 2
OR
4
USB bit 2
Key press 3
OR
8
USB bit 3
Key press 4
OR
16
USB bit 4
Key press 5
OR
32
USB bit 5
Key press 6
OR
64
USB bit 6
Key press 7
OR
128
USB bit 7
Key press 8
Light sensor
OR
OR
Note:
When used with a Lumina 3G controller, the same info applies, with the difference that key presses 5 through 8 correspond to keys 1 through 4 on “Response Pad 2”.
When Connected to StimTracker
Trigger Value
For
Notes
1
USB bit 0
Light sensor 4
Quad model only
OR
2
USB bit 1
Light sensor 3
Quad model only
OR
4
USB bit 2
Light sensor 2
OR
8
USB bit 3
Voice key / mic
Quad model only
OR
16
USB bit 4
Any participant key press
OR
32
USB bit 5
Audio – left
OR
64
USB bit 6
Audio – right
OR
128
USB bit 7
Light sensor 1
OR
m-pod contains a powerful microprocessor that can reassign any input signal to any output line, and without any significant delay. It can also assign multiple signals to the same output line.
The tables above describe the factory default. If your experiment or lab setup requires different output, Cedrus provides a free utility for configuring your m-pod. After you use it, your configuration is saved to flash memory so that it’s remembered even after you power off m-pod.
