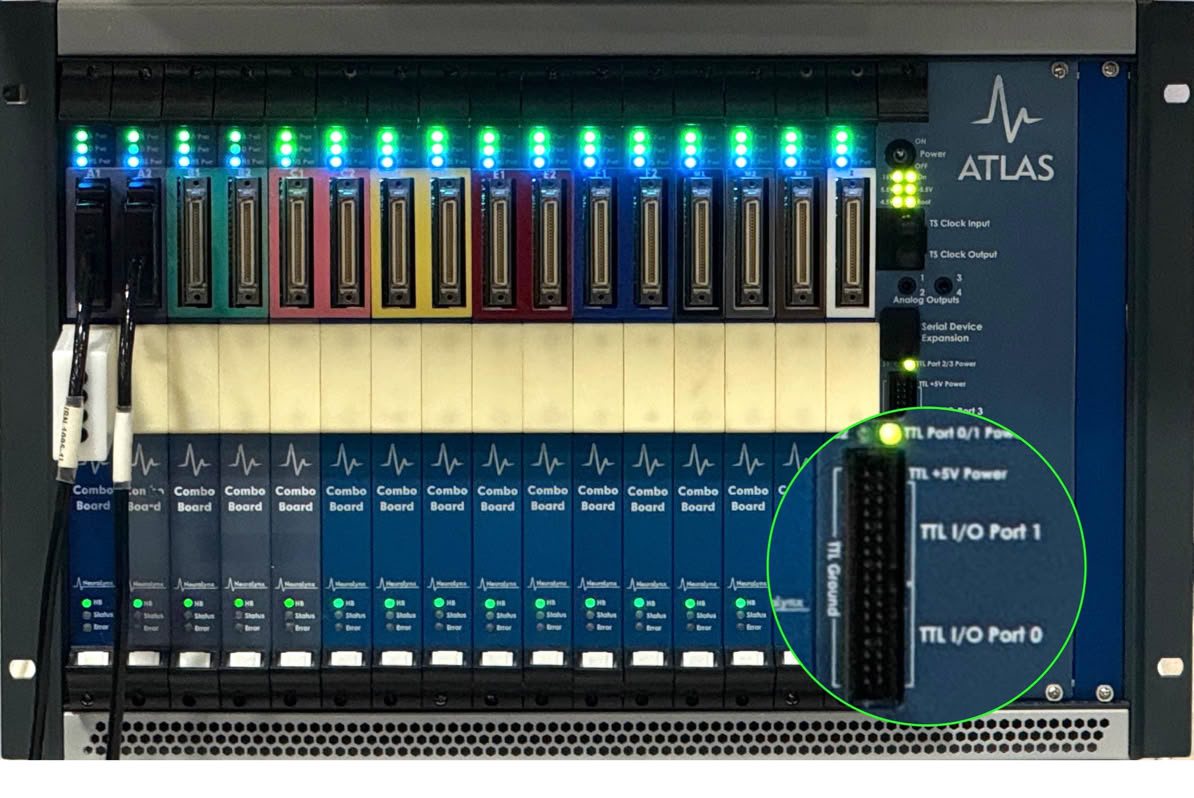

m-pod for NeuraLynx plugs into the TTL I/O Port 0 and Port 1 via the included ribbon cable:
m-pod contains a powerful microprocessor that can reassign any input signal to any output line, and without any significant delay. It can also assign multiple signals to the same output line.
The tables above describe the factory default. If your experiment or lab setup requires different output, Cedrus provides a free utility for configuring your m-pod. After you use it, your configuration is saved to flash memory so that it’s remembered even after you power off m-pod.
Last Revision: Dec 13, 2023
When Connected to a Riponda or RB-x40 Response Pad
Seen by BV Recorder as
For
Bit 0
Key press 1
Bit 1
Key press 2
Bit 2
Key press 3
Bit 3
Key press 4
Bit 4
Key press 5
Bit 5
Key press 6
Bit 6
Key press 7
Bit 7
Key press 8
Light sensor
OR
Bit 8
USB bit 0
Bit 9
USB bit 1
Bit 10
USB bit 2
Bit 11
USB bit 3
Bit 12
USB bit 4
Bit 13
USB bit 5
Bit 14
USB bit 6
Bit 15
USB bit 7
Note:
When used with a Lumina 3G controller, the same info applies, with the difference that key presses 5 through 8 correspond to keys 1 through 4 on “Response Pad 2”.
When Connected to StimTracker
Trigger Value
For
Notes
Bit 0
Light sensor 4
Quad model only
Bit 1
Light sensor 3
Quad model only
Bit 2
Light sensor 2
Bit 3
Voice key / mic
Quad model only
Bit 4
Any participant key press
Bit 5
Audio – left
Bit 6
Audio – right
Bit 7
Light sensor 1
Bit 8
USB bit 0
Bit 9
USB bit 1
Bit 10
USB bit 2
Bit 11
USB bit 3
Bit 12
USB bit 4
Bit 13
USB bit 5
Bit 14
USB bit 6
Bit 15
USB bit 7
